Managing Networks

For each project, you can save multiple LTE and Wi-Fi profiles for use across various devices through the Networks tab. This eliminates the need to repeatedly enter settings such as Wi-Fi passwords or LTE APNs during device provisioning.

Furthermore, you can implement these profiles remotely and manage your device’s network settings remotely through Ctrl.

• For each project: manage your network profiles
• For each device: manage your device network settings

Note: Network settings through Ctrl is only enabled for SG devices at the moment.

Manage Network Profiles

Network profile is a set of network configurations that can be implemented to multiple devices in the project. Note that these network profiles can only be implemented on SG devices at the moment.

If your device is provisioned via ZTP, an LTE profile will be automatically added for you, with name ‘1NCE’

Create new network profile

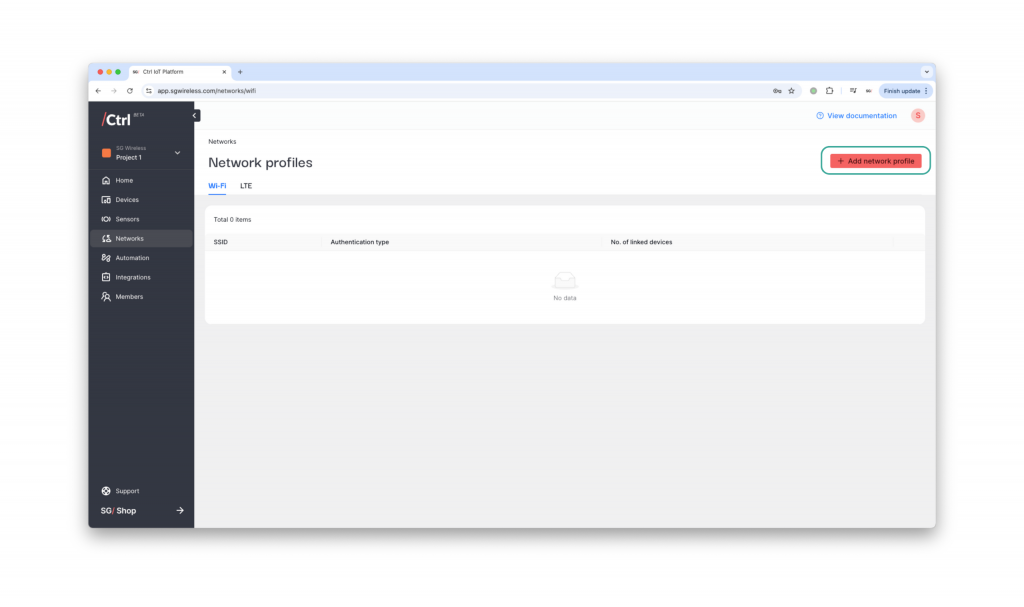

• In the side menu, click “Networks”, then “Add network profile”.

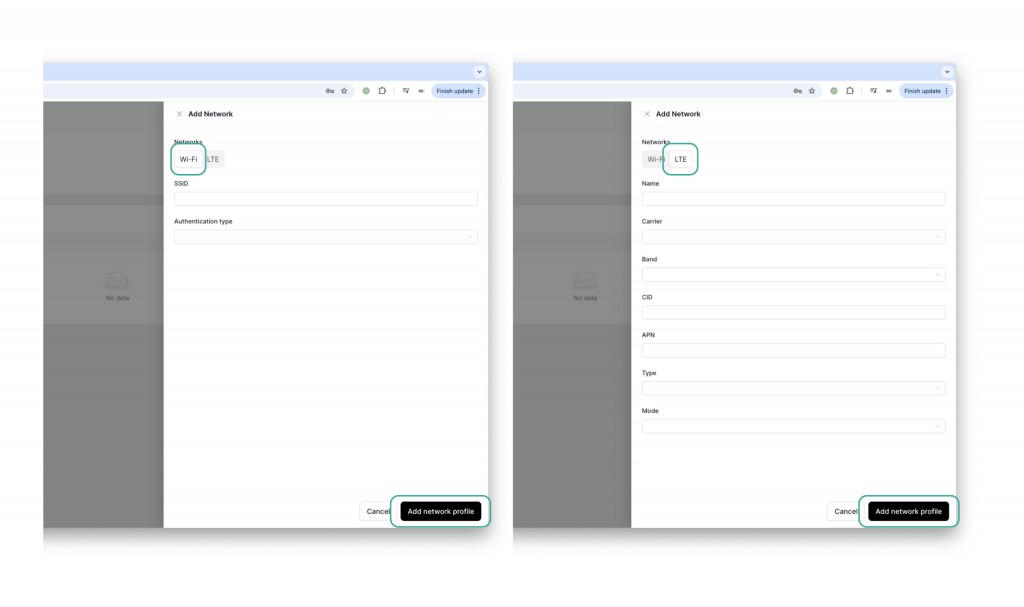

• Choose “Wi-Fi” or “LTE”, and enter the required network credentials.

• Click ‘Add network profile’ button once it’s done. Your new network profile will be be available under the corresponding tab.

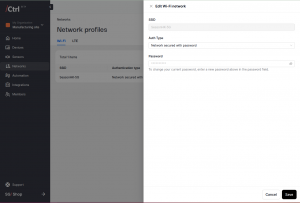

Edit network profile

1. In the side menu, click “Networks”,

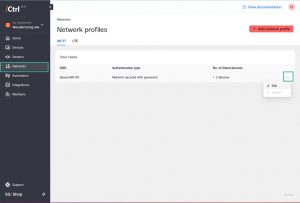

2. Click ‘···’ icon on the right-most column of the target network, then “Edit”.

3. Make changes to the network credentials as needed. Note that SSID is not editable for Wi-Fi profiles while name is not editable for LTE profiles.

4. Click ‘Save’ to apply changes.

Note: In order to implement the changes on your devices, you need to deploy the changes through each device’s network tab

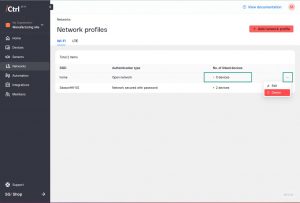

Delete network profile

A network can only be deleted if it is not being used by an existing device.

1. In the side menu, click “Networks”, then choose the target network.
2. Click ‘···’ icon on the right-most column of the target profile, then “Delete”.


Manage Device Network Settings

F1 Starter Kit supports multiple network types that can be adjusted according to your need. You can enable or disable particular network types AND adjust the network type priority of your Starter Kit through Ctrl.

Accessing the device network settings

1. In the side menu, click “Devices”. Then, click on the target device.
2. Click on the device’s “Networks” tab.

Activate or deactivate a network

To activate or deactivate a network type:

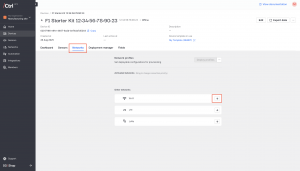

1. Click on the -> icon on the target network

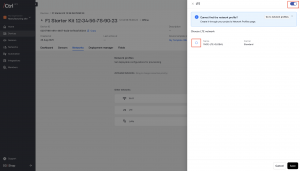

2. Press the toggle on the top right corner.

3. If you are activating the network, choose the preferred network profile before saving the update.
4. The activated networks are displayed under the “Activated networks” section, while the non-active networks are displayed under “Other networks” section.

Adjust the device network priority

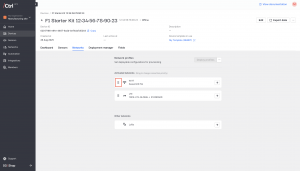

1. In the list of activated networks, click and hold the three lines on the left of the target network, and drag it to its desired priority.


Note: This priority will only be used during the first-time connection. Automatic network switching is not supported after connection has been established.

Deploy the network setting

To implement the updated settings on your device, deploy it using one of the following approaches:

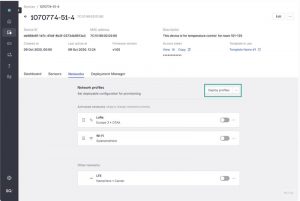

1. If your device is currently online: press ‘Deploy profiles’ button to deploy the update over the air.

2. If your device is currently offline:

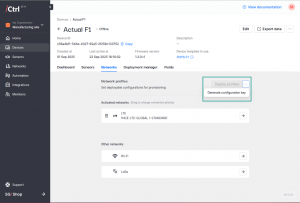

   1. Generate an activation key by clicking the button under the “…” icon of the device’s network tab

   2. Copy the resulting activation code.
   3. Deploy the code through CtrlR Visual Studio plugin.
